Description

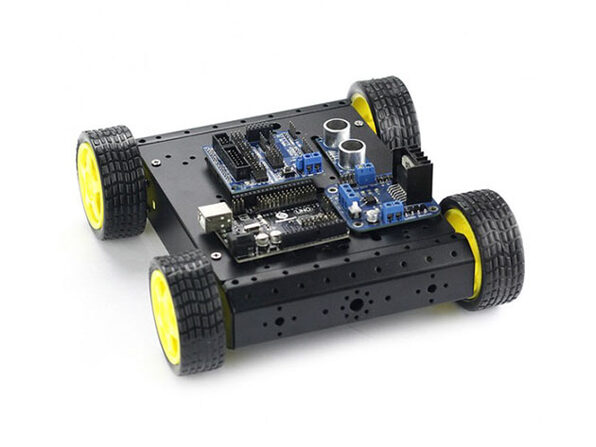

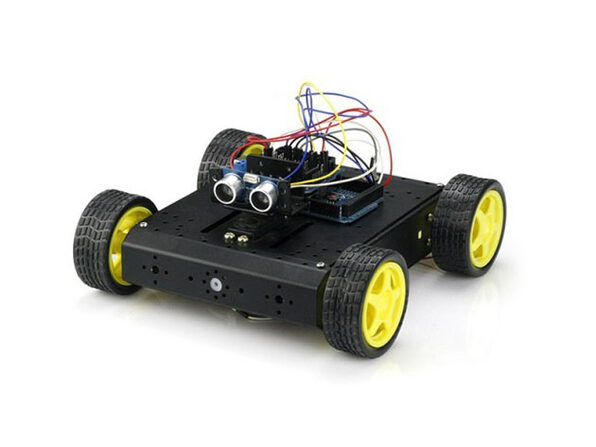

Robotics can be a difficult hobby to jump into, but Arduino and the 4WD Robot Platform make it easy for you to build a complete robot with ease! By utilizing some Arduino components, this combo helps you learn the basics of robotics, applications of Arduino, and the building process as you construct a real robotic car.- MEGA 2560 microcontroller board has ability to control car while connected to a computer
- Arduino Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers, & more

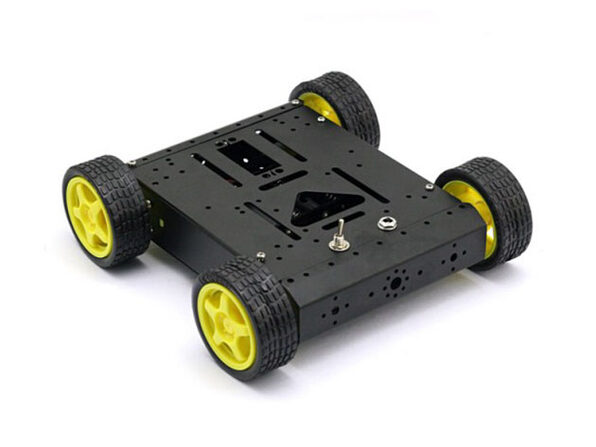

- Latest 4WD aluminum mobile robot platform holds many controllers, drivers, sensors, & RF modules
Details & Requirements
- MEGA 2560 Board:
- 54 digital input/output pins (14 of which can be used as PWM outputs)
- 16 analog inputs
- 4 UARTs
- 16 MHz crystal oscillator
- USB connection
- Power jack
- ICSP header
- Reset button
- L298N Dual H Bridge DC Motor Driver IC:
- Terminal supply area of driven part Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
- Peak current of driven part Io: 2A
- Terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
- Operating current range of the logical part : 0 ~ 36mA
- Control signal input voltage range:
- Low:-0.3V ≤ Vin ≤ 1.5V
- High: 2.3V ≤ Vin ≤ Vss
- Enable signal input voltage range:
- Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
- High: 2.3V ≤ Vin ≤ Vss (control signal active)
- Maximum power consumption: 20W (when the temperature T = 75 °C)
- Storage temperature: -25 °C ~ +130 °C
- Driver board size: 55mm x 49mm x 33mm (with fixed copper pillar and the heat sink height)
- Driver board weight: 33g
- Distance sensor:
- Power supply: 5V DC
- Quiescent current: < 2mA
- Effectual angle: < 15º
- Ranging distance: 2 cm - 500 cm
- Resolution: 0.3 cm

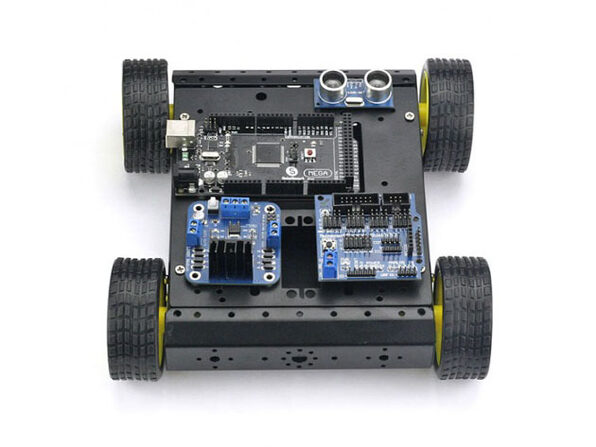

Includes
- SainSmart MEGA 2560
- SainSmart Sensor Shield module V5
- SainSmart 4WD drive aluminum mobile car robot platform
- SainSmart L298N Dual H bridge DC motor driver
- SainSmart ultrasonic module HC-SR04 distance sensor
